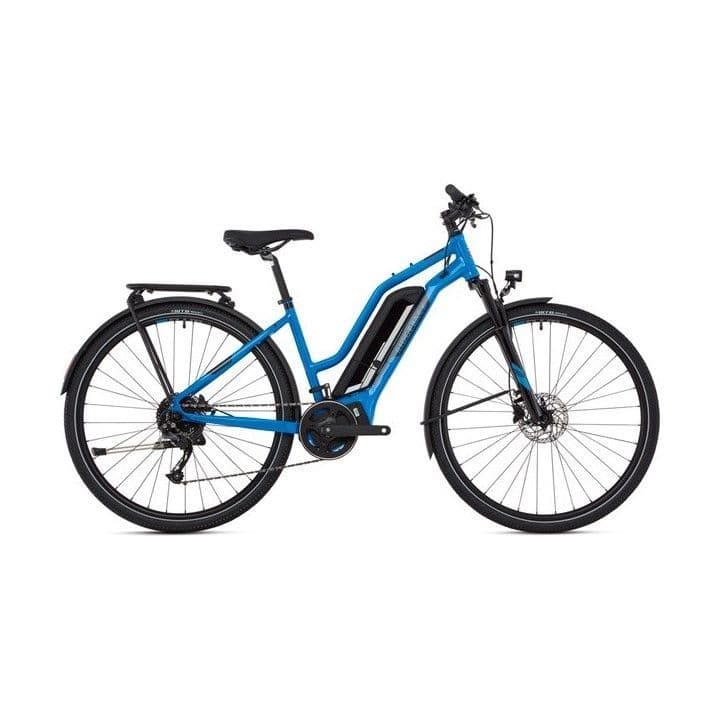

Ridgeback Arcus 2 Electric Assist Hybrid Women's
The second generation of the Arcus has become more refined without losing any of its original practical charm. The Arcus 2 is built around a 6061 heat treated aluminium lightweight and strong frame which is paired with a 63mm travel suspension fork which makes sure you maintain a comfortable ride whatever the terrain. Equipped with a Sportdrive MD250S drive unit offering 250w of power and up to 90nm of torque mounted in the bottom bracket it allows you to take on any urban environment. Finished off with full length guards, pannier rack and lights out of the box the Arcus 2 is a true modern urban utility bike.
| Frame | SPORTDRIVE 6061 HEAT TREATED ALUMINIUM |
|---|---|
| Rear Shock | |
| Fork | ZOOM 188D, LO, 63MM TRAVEL |
| Headset | FSA HS NO.10 1-1/8" |
| Shifters | SHIMANO ALTUS SL-M2000 9-SPEED |
| Rear Derailleur | SHIMANO ALTUS RD-M2000 9-SPEED |
| Front Derailleur | N/A |
| Chainset | SPORTDRIVE 170MM, 42T |
| Bottom Bracket | N/A |
| Chain | KMC X9E |
| Cassette / Freewheel | SHIMANO CS-HG200-9 11-36T |
| Rims | WTB SX19 32H |
| Hubs | SHIMANO HB-M4050 / FH-M4050 32H |
| Spokes | STEEL 14G |
| Tyres | WTB RIDDLER 700x45C REFLEX |
| Brakes | SHIMANO BR-MT200 HYDRAULIC BRAKES |
| Brake levers | SHIMANO BL-MT200 HYDRAULIC BRAKES |
| Handlebars | ALLOY 9DEG BACKSWEEP, 31.8MM BAREBORE, 680MM WIDTH |
| Stem | ALLOY, 65MM, +9DEG |
| Saddle | RIDGEBACK METRO |
| Seatpost | ALLOY 27.2x350MM |
| Pedals | RIDGEBACK METRO |
| Drive Unit | SPORTDRIVE MD250S, 250W, 90NM |
| Battery | SPORTDRIVE 418WH |
| charger | SPORTDRIVE 2AH |
For information on the sizing and geometry of the bike please click here.
